RK-L250ブラシ付きモーター/圓形鐵殼

用途: 電動カーテン 、電動缶切り



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
RK-L250VBC-08590-R 14.0-30.0 24.0V CONSTANT 3800 0.035 2810 0.092 36.60 3.58 1.08 50.50 0.30 164 16.07
RK-L250-12310-R 12.0-30.0 24.0V CONSTANT 7500 0.080 5938 0.254 60.61 5.94 3.70 62 1.20 355 34.80
RK-L250-16210-R 6.0-24.0 12.0V CONSTANT 5200 0.100 4474 0.337 54.71 5.36 2.51 66 1.55 309 30.29
RK-L250VBC-18185-R 6.0-18.0 12.0V CONSTANT 6000 0.105 5071 0.359 54.06 5.30 2.81 68.98 2.07 377 36.96
馬達的出軸長度及性能參數,EMC 對策可依客人要求做調整,詳情可詢問相關業務人員。

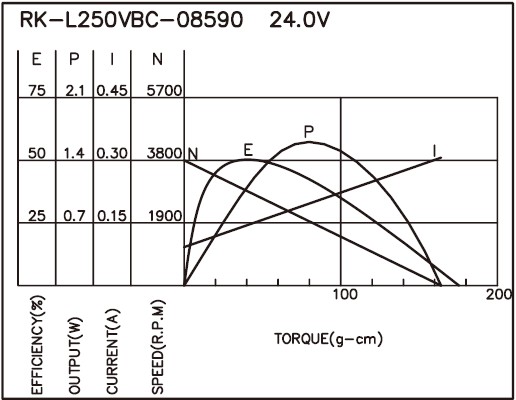

  • torque_165648316978.jpg

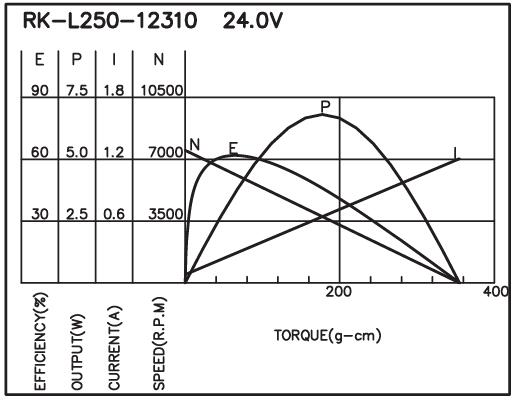

  • torque_165648316958.jpg

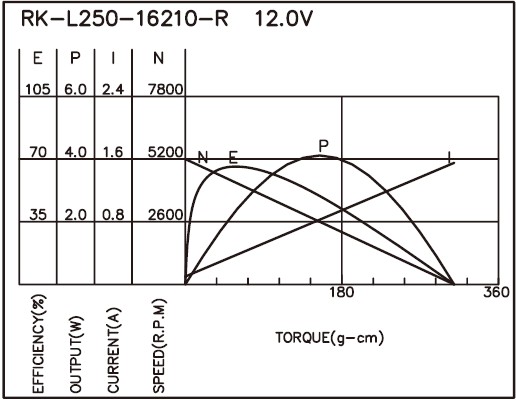

  • torque_165648316949.jpg

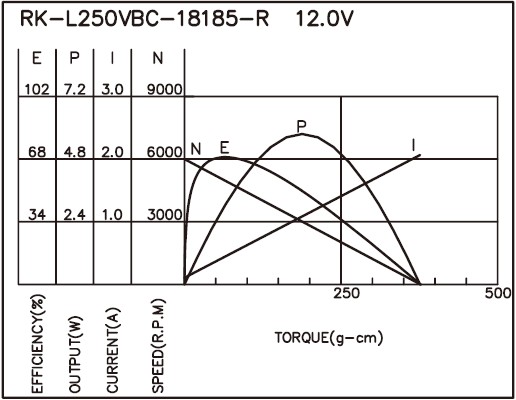

  • torque_165648316919.jpg
